Hot Spring Spas offer traditional Hydromassage, and directional water jets in combination with an energy-efficient temperature control system to create the perfect spa environment for relaxation.
Our tubs offer the perfect blend of design and technology.…
HOT SPOT COLLECTION
LIMELIGHT COLLECTION
HIGHLIFE COLLECTION
Cozy enough for two but big enough for friends. The 530 Hybrid4 merges together the best of both worlds. With seating for up to four, a cooling seat and up to 102 fully customizable jets, the 530 gives you the ability to feel intimate in our own personal oasis or share the warmth and connect with the favourite people in your life.
| FlexJet Configuration: | 20 Jet Ports Delivering 54 – 84 fully customizable FlexJets. Inc. Reflex Foot Massage |
| Seating Capacity: | 4 people + 1 cooling seat |
| Dimensions: | 70 x 86 x 38 inches |
| Dry / Filled Weight: | 604 lbs / 2805 lbs. |
| Water Capacity: | 264 US gallons |
| Jet Pump Configuration: | 1 x 3.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 4 Wall 100% Cavity Sealed Insulation System. |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Hybrid 4™ Safe Axis Step |
| Electrical Requirements: | 40 AMP, 230v, Teck 8/3 |
With an all-new design, featuring incredible hydrotherapy and reclined massage seating, the 007 model offers the perfect solution for the urban couple! Built to fit into small spaces with incredible hydrotherapeutic power, the 007 delivers exceptional quality that you would expect from any of the Beachcomber lineup.
Available in LEEP Edition.
| FlexJet Configuration: | 16 Jet Ports Delivering 16 – 40 fully customizable FlexJets. |
| Seating Capacity: | 2 people |
| Dimensions: | 46 x 86 x 30 inches |
| Dry / Filled Weight: | 387 lbs / 1638 lbs. |
| Water Capacity: | 150 US gallons. |
| Jet Pump Configuration: | 1 x 1HP Message Master XLT |
| Circulation Pump: | N/A |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting & Crescent Moon LED Ambient Lighting System |
| Waterfall: | Blade Waterfall |
| Operating System: | New* SST30 Management System with Intuitive EasyTouch 1000 & Bic-E Smartphone Control |
| Heater: | 1.5KW Full Immersion Heating SysteM |
| Energy Efficiency: | 100% Cavity Sealed Insulation SysteM |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Polymer Step (Optional Extra) |
| Electrical Requirements: | 20 AMP, 110v, Inline GFCI |
With an all-new design, featuring incredible hydrotherapy and reclined massage seating, the 007 model offers the perfect solution for the urban couple! Built to fit into small spaces with incredible hydrotherapeutic power, the 007 delivers exceptional quality that you would expect from any of the Beachcomber lineup.
Available in LEEP Edition.
| FlexJet Configuration: | 16 Jet Ports Delivering 16 – 40 fully customizable FlexJets. |
| Seating Capacity: | 2 people |
| Dimensions: | 46 x 86 x 30 inches |
| Dry / Filled Weight: | 387 lbs / 1638 lbs. |
| Water Capacity: | 150 US gallons. |
| Jet Pump Configuration: | 1 x 1HP Message Master XLT |
| Circulation Pump: | N/A |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting & Crescent Moon LED Ambient Lighting System |
| Heater: | 1.5KW Full Immersion Heating SysteM |
| Energy Efficiency: | 100% Cavity Sealed Insulation SysteM |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Polymer Step (Optional Extra) |
| Electrical Requirements: | 20 AMP, 110v, Inline GFCI |
Cozy enough for two but with seating for five, the 540 Hybrid4 merges together the best of both worlds. With seating for up to five, a cooling seat and up to 102 fully customizable Water Movement Jets, the 540 Hybrid4 gives you the ability to feel intimate in our own personal oasis or share the warmth and connect with the favourite people in your life.
Available in LEEP Edition.
| FlexJet Configuration: | 25 Jet Ports Delivering 54 – 102 fully customizable FlexJets. Inc. Reflex Foot Massage |
| Seating Capacity: | 5 people + 1 cooling seat. |
| Dimensions: | 70 x 86 x 38 inches. |
| Dry / Filled Weight: | 600 lbs / 3103 lbs. |
| Water Capacity: | 300 US gallons |
| Jet Pump Configuration: | 1 x 3.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump (Optional Extra) |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 4 Wall 100% Cavity Sealed Insulation System |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Hybrid 4™ Safe Axis Step |
| Electrical Requirements: | 40 AMP, 230v, Teck 8/3 |
This energy efficient oasis is the perfect way to disconnect from the digital world for some quality time reconnecting with your family or friends. The 730 Hybrid4 features a full-body massaging lounger, Reflex Foot Massage and seats up to 6 people with 1 cooling seat. With up to 161 fully customizable Water Movement Jets to help you disconnect from everyday stresses.
Available in LEEP Edition.
| FlexJet Configuration: | 47 Jet Ports Delivering 119 – 183 fully customizable FlexJets. |
| Seating Capacity: | 6 people + 1 cooling seat, Luxury Lounger |
| Dimensions: | 89 x 89 x 38 inches |
| Dry / Filled Weight: | 800 lbs / 4162 lbs. |
| Water Capacity: | 403 US gallons |
| Jet Pump Configuration: | 2 x 4.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting & Crescent Moon LED Ambient Lighting System |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 4 Wall 100% Cavity Sealed Insulation System |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Hybrid 4™ Safe Axis Step |
| Electrical Requirements: | 50 AMP, 230v, Teck 6/3 |
Ideal for tighter spaces, the Beam has a smaller footprint but still provides spacious seating for four people. Each corner seat features a different hydrotherapy option and the large footwell is an added bonus in this spa’s roomy interior. Ask about our ACE Salt Water option.
| Seating Capacity: | 4 adults |
| Dimensions: | 6’ 8” x 6’ 8” x 33”/2.03m x 2.03m x 0.84m |
| Water Capacity: | 295 gallons/1,115 liters |
| Dry / Filled Weight: | 700 lbs./320 kg dry; 3,820 lbs./1,740 kg filled* |
| Spa Shell Options: | Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert |
| Cabinet Options: | Coastal Gray, Espresso or Sable |
| Jets – 19 (w/ Stainless Steel Trim): | 1 XL Directional jet 2 Standard Single Rotary jets 2 Standard Directional jets 14 Directional Precision jets |
| Water Feature: | Vidro® backlit ribbon waterfall |
| Water Care System (Optional): | FreshWater™ Salt System |
| Jet Pump: | Wavemaster® 9000 One-Speed 2.5 HP, continuous duty 5.2 HP, breakdown torque or Wavemaster 7000 One-Speed 1.65 HP, continuous duty 3.5 HP, breakdown torque |
| Circulation Pump: | SilentFlo 5000® for quiet, continuous filtration |
| Effective Filtration Area: | 100 sq. ft., top-loading filters |
| Ozone System: | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® with LCD control panel 230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel or 115v/20amp, 60Hz includes G.F.C.I. protected power cord |
| Lighting System: | Raio® multi-color interior points of light (30) Exterior multi-color lighting with timer |
| Heater: | No-Fault®, 6,000w/230v or 1,500w/115v |
| Energy Efficiency: | FiberCor® insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate or Slate |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® or Polymer |
| Entertainment System (Optional): | Wireless Entertainment |
* Includes water and 4 adults weighing 175 lbs. each
Export models available in 240v, 50Hz, 1500w heater
The open-seat design creates a spacious interior that accommodates up to seven people in this spa with a conservative 7’ x 7’ footprint. A pod in the footwell houses four precision directional jets for a foot massage in nearly every seat. Ask about our ACE Salt Water option.
| Seating Capacity: | 7 adults |
| Dimensions: | 7’ x 7’ x 36”/2.13m x 2.13m x 0.91m |
| Water Capacity: | 360 gallons/1,365 liters |
| Dry / Filled Weight: | 845 lbs./385 kg dry; 5,070 lbs./2,300 kg filled* |
| Spa Shell Options: | Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert |
| Cabinet Options: | Coastal Gray, Espresso or Sable |
| Jets – 41 (w/ Stainless Steel Trim): | 1 XL Dual Rotary jet 3 XL Single Rotary jets 1 XL Directional jet 4 Standard Single Rotary jets 4 Standard Directional jets 4 Rotary Precision jets 24 Directional Precision jets |
| Water Feature: | Vidro® backlit ribbon waterfall |
| Water Care System (Optional): | FreshWater™ Salt System |
| Jet Pump 1: | Wavemaster® 8200 Two-Speed 2.0 HP, continuous duty 4.0 HP, breakdown torque |
| Jet Pump 2: | Wavemaster® 8200 Two-Speed 2.0 HP, continuous duty 4.0 HP, breakdown torque |
| Circulation Pump: | SilentFlo 5000® for quiet, continuous filtration |
| Effective Filtration Area: | 100 sq. ft., top-loading filters |
| Ozone System: | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® with LCD control panel 230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel |
| Lighting System: | Raio® multi-color interior points of light (27)Exterior multi-color lighting with timer |
| Heater: | No-Fault®, 4000w/230v |
| Energy Efficiency: | Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate, Slate, or Evergreen |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® or Polymer |
| Entertainment System (Optional): | Wireless Entertainment |
* Includes water and 7 adults weighing 175 lbs. each.
Export models available in 240v, 50Hz, 1500w heater
With seating for six, the Flair offers great versatility with both a row of open seats and a lounger. There’s generous space for your feet, and with jets in the footwell and the lounger, this spa is built to give you a truly relaxing experience. Ask about our ACE Salt Water option.
| Seating Capacity: | 7 adults |
| Dimensions: | 7’ x 7’ x 36”/2.13m x 2.13m x 0.91m |
| Water Capacity: | 335 gallons/1,270 liters |
| Dry / Filled Weight: | 875 lbs./400 kg dry; 4,720 lbs./2,140 kg filled* |
| Spa Shell Options: | Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert |
| Cabinet Options: | Coastal Gray, Espresso or Sable |
| Jets – 43 (w/ Brushed Stainless Steel Trim): | 1 XL Dual Rotary jet 2 XL Single Rotary jets 1 XL Directional jet 6 Standard Dual Rotary jets 2 Standard Directional jets 31 Directional Precision jets |
| Water Feature: | Vidro® backlit ribbon waterfall |
| Water Care System (Optional): | FreshWater™ Salt System |
| Jet Pump 1: | Wavemaster® 8200 Two-Speed 2.0 HP, continuous duty 4.0 HP, breakdown torque |
| Jet Pump 2: | Wavemaster® 8000 One-Speed 2.0 HP, continuous duty 4.0 HP, breakdown torque |
| Circulation Pump: | SilentFlo 5000® for quiet, continuous filtration |
| Effective Filtration Area: | 100 sq. ft., top-loading filters |
| Ozone System: | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® with LCD control panel 230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel |
| Lighting System: | Raio® multi-color interior points of light (32) Exterior multi-color lighting with timer |
| Heater: | No-Fault®, 4000w/230v |
| Energy Efficiency: | Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate, Slate, or Evergreen |
| Cover Lifter (Optional): | CCoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® or Polymer |
| Entertainment System (Optional): | Wireless Entertainment |
* Includes water and 7 adults weighing 175 lbs. each.
Export models available in 240v, 50Hz, 1500w heater
The roomy interior seats up to seven adults in a spa that fits comfortably on most patios. It includes a jetted foot pod with seven precision directional jets for a penetrating foot massage from every seat. Ask about our ACE Salt Water option.
| Seating Capacity: | 7 adults |
| Dimensions: | 7’5” x 7’5” x 38”/2.26m x 2.26m x 0.97m |
| Water Capacity: | 445 gallons/1,685 liters |
| Dry / Filled Weight: | 1,015 lbs./460 kg dry; 5,950 lbs./2,700 kg filled* |
| Spa Shell Options: | Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert |
| Cabinet Options: | Coastal Gray, Espresso or Sable |
| Jets – 35 (w/ Stainless Steel Trim): | 1 XL Dual Rotary jet 1 XL Single Rotary jet 2 XL Directional jets 4 Standard Single Rotary jets 2 Standard Directional jets 4 Rotary Precision jets 35 Directional Precision jets |
| Water Feature: | Vidro® backlit ribbon waterfall |
| Water Care System (Optional): | FreshWater™ Salt System |
| Jet Pump 1: | Wavemaster® 9200 Two-Speed 2.5 HP, continuous duty 5.2 HP, breakdown torque |
| Jet Pump 2: | Wavemaster® 9000 One-Speed 2.5 HP, continuous duty 5.2 HP, breakdown torque |
| Circulation Pump: | SilentFlo 5000® for quiet, continuous filtration |
| Effective Filtration Area: | 100 sq. ft., top-loading filters |
| Ozone System: | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® with LCD control panel 230v/50amp, 60Hz Includes G.F.C.I. protected sub-panel |
| Lighting System: | Raio® multi-color interior points of light (32) Exterior multi-color lighting with timer |
| Heater: | No-Fault®, 4000w/230v |
| Energy Efficiency: | Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate or Slate |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® or Polymer |
| Entertainment System (Optional): | Wireless Entertainment |
* Includes water and 7 adults weighing 175 lbs. each
Export models available in 240v, 50Hz, 1500w heater
The expansive Grandee hot tub comfortably seats a party of seven, with room for everyone to enjoy state-of-the-art jets, a two-speed jet pump, and two seats with patented Moto-Massage® DX jets. It also features advanced innovations like an insulating hinge seal, 100% no-bypass filtration for cleaner water and the soothing BellaFontana® fountain feature.
| Seating Capacity: | 7 adults |
| Dimensions: | 8’4” x 7’7” x 38”/2.54m x 2.31m x .97m |
| Water Capacity: | 1060 lbs./480 kg dry; 6,040 lbs./2,740 kg filled* |
| Dry / Filled Weight: | 1060 lbs./480 kg dry; 6,040 lbs./2,740 kg filled* |
| Spa Shell Options: | Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert** |
| Cabinet Options: | Everwood®HD: Mocha, Monterey Gray or Teak** SpaStone®: Earth or Gray |
| Jets – 43(w/ Stainless Steel Trim): | 2 Moto-Massage® DX jets (2) 2 SoothingStream® jets 3 JetStream® jets 2 Rotary Hydromassage jets 2 Directional Hydromassage jets 30 Directional Precision® jets |
| Water Feature: | BellaFontana® with 3 illuminated arcs of water |
| Water Care System (Optional): | ACE® Salt Water Sanitizing System or EverFresh® System |
| Jet Pump 1: | Wavemaster® 9000; One-speed, 2.5 HP Continuous Duty, 5.2 HP Breakdown Torque |
| Jet Pump 2: | Wavemaster® 9200; Two-speed, 2.5 HP Continuous Duty, 5.2 HP Breakdown Torque |
| Circulation Pump: | SilentFlo 5000® for quiet, continuous filtration |
| Effective Filtration Area: | 325 sq. ft., top loading Tri-X® filters 100% no-bypass filtration |
| Ozone System: | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® with touchscreen control panel 230v/50amp, 60Hz, Includes G.F.C.I. protected sub-panel |
| Lighting System: | Luminescence® multi-color four-zone |
| Heater: | No-Fault®, 4000w/230v |
| Energy Efficiency: | Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate, Slate, or Evergreen |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® HD, NXT, Polymer, SpaStone |
| Entertainment System (Optional): | Wireless Sound System |
* Includes water and 7 adults weighing 175 lbs. each
**Some color combinations are considered special orders. Ice Gray/Teak, Crème/Monterey Gray,
Desert/Monterey Gray, and Platinum/Teak have special order pricing.
Export models available in 230v, 50Hz, 1500w Heater
The largest spa in the Hot Spring® lineup! The Prism seats seven adults and features a relaxing lounger, plus an Adirondack-style seat with wrist, calf and foot therapy jets. The footwell includes a powerful, extra-large jet for enhanced foot and leg massage, along with several precision directional jets in corner and side seats. Ask about our ACE Salt Water option.
| Seating Capacity: | 7 adults |
| Dimensions: | 9’2” x 7’7” x 38”/ 2.79m x 2.31m x 0.97m |
| Water Capacity: | 525 gallons/1,990 liters |
| Dry / Filled Weight: | 1,190 lbs./540 kg dry; 6,795 lbs./3,085 kg filled* |
| Spa Shell Options: | Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert |
| Cabinet Options: | Coastal Gray, Espresso or Sable |
| Jets – 73(w/ Stainless Steel Trim): | 1 XXL Footwell jet 1 XL Dual Rotary jet 2 XL Single Rotary jets 3 XL Directional jets 7 Standard Dual Rotary jets 4 Standard Single Rotary jets 4 Standard Directional jets 10 Rotary Precision jets 41 Directional Precision jets |
| Water Feature: | Vidro® backlit ribbon waterfall |
| Water Care System (Optional): | FreshWater™ Salt System |
| Jet Pump 1: | Wavemaster® 9200 Two-Speed 2.5 HP, continuous duty 5.2 HP, breakdown torque |
| Jet Pump 2: | Wavemaster® 9000 One-Speed 2.5 HP, continuous duty 5.2 HP, breakdown torque |
| Jet Pump 3: | Wavemaster® 9000 One-Speed 2.5 HP, continuous duty 5.2 HP, breakdown torque |
| Circulation Pump: | SilentFlo 5000® for quiet, continuous filtration |
| Effective Filtration Area: | 150 sq. ft., top-loading filters |
| Ozone System: | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® with LCD control panel 230v/50amp, 60Hz 230v/70amp, 60Hz (optional). Includes G.F.C.I. protected sub-panel |
| Lighting System: | Raio® multi-color interior points of light (38) Exterior multi-color lighting with timer |
| Heater: | No-Fault®, 4000w/230v |
| Energy Efficiency: | Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate, Slate, or Evergreen |
| Cover Lifter (Optional): | CoverCradle® included |
| Steps (Optional): | Everwood® or Polymer |
| Entertainment System (Optional): | Wireless Entertainment |
* Includes water and 7 adults weighing 175 lbs. each.
Export models available in 240v, 50Hz, 1500w heater
Simple and elegant, the Classic shape of the 320 LEEP never goes out of style. It features all the benefits for an enjoyable spa experience including up to 45 fully customizable Water Movement Jets for comfort and seating for 4-5.
Perfect for a smaller space, without compromising on on quality & efficiency.
| FlexJet Configuration: | 9 Jet Ports Delivering 13 – 45 fully customizable FlexJets. |
| Seating Capacity: | 4 people |
| Dimensions: | 78” Diameter x 34 inches. |
| Dry / Filled Weight: | 425 lbs / 1885 lbs. |
| Water Capacity: | 175 US gallons. |
| Jet Pump Configuration: | 1 x 2.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump (Optional Extra) |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 100% Cavity Sealed Insulation System |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Polymer Step (Optional Extra) |
| Electrical Requirements: | 40 AMP, 230v, Teck 8/3 |
The 590 Hybrid4 is the perfect setting to spend time with those closest to you! With special features such as a loveseat, Verta-sage neck jets and body hugging design, you’re sure to be the life of the party with this hot tub!
Available in LEEP Edition.
| FlexJet Configuration: | 35 Jet Ports Delivering 48 – 126 fully customizable FlexJets. Inc. Reflex Foot Massage |
| Seating Capacity: | 7 people + 1 cooling seat |
| Dimensions: | 89 x 89 x 38 inches. |
| Dry / Filled Weight: | 725 lbs / 4312 lbs. . |
| Water Capacity: | 430 US gallons. |
| Jet Pump Configuration: | 1 x 4.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 4 Wall 100% Cavity Sealed Insulation System |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Hybrid 4™ Safe Axis Step |
| Electrical Requirements: | 40 AMP, 230v, Teck 8/3 |
With seating for 6, cushioned headrests and 35 targeted jets, there’s plenty of room for you, friends and family to relax in the 360-gallon Relay. This value-packed spa is FiberCor® insulated and comes with a NoFault® heater. It also comes with dimmable multi-color LED lights for added ambiance.
| Seating Capacity:6 | 6 adults |
| Dimensions: | 7’ x 7’ x 36.75”/2.13m x 2.13m x .93m |
| Water Capacity: | 345 gallons/1,300 liters |
| Dry / Filled Weight: | 835 lbs./380 kg dry; 4,765 lbs. 2,160 kg filled* |
| Spa Shell Options: | Pearl, Sterling Marble, Tuscan Sun or Desert |
| Cabinet Options: | Coastal Gray, Espresso, Teak |
| Jets – 35 (w/ Stainless Steel Trim): | Directional Hydromassage jets 3 Rotary Hydromassage jets 27 Directional Precision® jets |
| Water Feature: | Waterfall |
| Jet Pump 1: | Wavemaster® 6200; Two-speed, 1.5 HP Continuous Duty, 3.2 HP Breakdown Torque |
| Jet Pump 2: | Wavemaster® 6000; One-speed, 1.5 HP Continuous Duty, 3.2 HP Breakdown Torque |
| Ozone System (optional): | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® 230v/50 amp, 60 Hz Includes G.F.C.I. protected sub-panel |
| Lighting: | 10 multi-color LED points of light, dimmable |
| Heater: | No-Fault® 4000w/230v |
| Energy Efficiency: | FiberCor® insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Effective Filtration Area: | 65 sq. ft., top loading |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core Ash, Caramel or Espresso |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® or Polymer Coastal Gray, Espresso or Teak |
| Entertainment System (Optional): | Wireless Entertainment |
* Includes water and 6 adults weighing 175 lbs. each
Export models available in 240v, 50Hz, 1500w heater

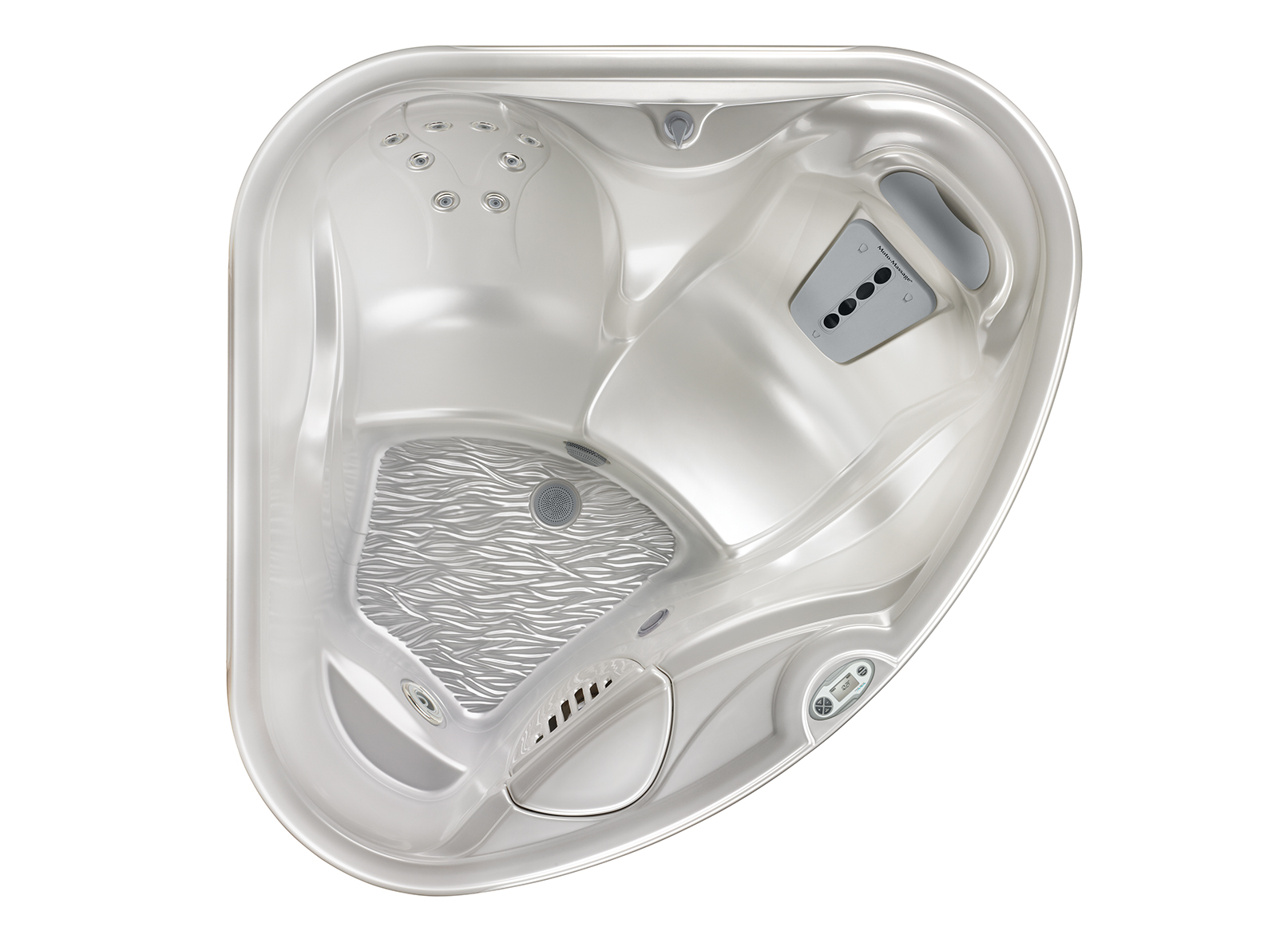

With seating for two, the TX packs power and comfort in a small package. Easy to fit in small spaces like a confined patio or porch, this easy-to-care-for hot tub offers 10 soothing jets — including a Moto-Massage® jet, a No-Fault® heater and FiberCor® insulation.
| Seating Capacity:6 | 2 adults |
| Dimensions: | 5’8.5” x 5’8.5” x 29”/1.74m x 1.74m x .74m |
| Water Capacity: | 140 gallons/525 liters |
| Dry / Filled Weight: | 525 lbs./240 kg dry; 2,045 lbs./925 kg filled* |
| Spa Shell Options: | Pearl or Desert |
| Cabinet Options: | Coastal Gray, Espresso, Teak |
| Jets – 10: | 1 Moto-Massage® jet 1 Rotary Hydromassage jet 8 Directional Precision® jets |
| Water Feature: | N/A |
| Jet Pump 1: | Wavemaster® 4200; Two-speed, 1.0 HP Continuous Duty, 1.7 HP Breakdown Torque |
| Jet Pump 2: | N/A |
| Ozone System (optional): | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® 115v/20 amp** (Includes G.F.C.I. protected power cord) or 115v/30amp*** or 220v/50amp***, 60Hz |
| Lighting: | Blue LED light, dimmable; Splendors® multi-colored LED light, dimmable (optional) |
| Heater: | No-Fault® 1000w/115v |
| Energy Efficiency: | FiberCor® insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Effective Filtration Area: | 30 sq. ft., top loading |
| Vinyl Cover: | 3” to 2” tapered, 1 lb. density foam core Ash, Caramel or Teak |
| Cover Lifter (Optional): | N/A |
| Steps (Optional): | Everwood® or Polymer Coastal Gray, Espresso or Teak |
| Entertainment System (Optional): | Wireless Sound System |
* Includes water and 3 adults weighing 175 lbs.each
** Requires a dedicated circuit supplied to the unit at all times. Electrical requirements will vary outside the U.S.
*** G.F.C.I. protected sub-panel required in 30amp conversion or 220v mode Export models available in 230v, 50Hz, 1000w Heater
ç
The 3-person SX spa comes complete with a Moto-Massage® jet and all of the outstanding features that normally come in a full-size Hot Spring spa. This model includes a No-Fault® heater, and FiberCor® insulation.
| Seating Capacity:6 | 3 adults |
| Dimensions: | 6’ x 6’ x 33”/1.83m x 1.83m x .84m |
| Water Capacity: | 285 gallons/1,075 liters |
| Dry / Filled Weight: | 720 lbs./325 kg dry; 3,620 lbs./1,640 kg filled* |
| Spa Shell Options: | Pearl or Desert |
| Cabinet Options: | Coastal Gray, Espresso, Teak |
| Jets – 17: | 1 Moto-Massage® jet 16 Directional Precision® jets |
| Water Feature: | N/A |
| Jet Pump 1: | Wavemaster® 6200; Two-speed 1.5 HP Continuous Duty, 3.2 HP Breakdown Torque |
| Jet Pump 2: | N/A |
| Ozone System (optional): | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® 115v/20 amp** (Includes G.F.C.I. protected power cord or 115v/30amp*** or 220v/50amp***, 60Hz |
| Lighting: | Blue LED light, dimmable; Splendors® multi-colored LED light, dimmable (optional) |
| Heater: | No-Fault® 1000w/115v |
| Energy Efficiency: | FiberCor® insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Effective Filtration Area: | 30 sq. ft., top loading |
| Vinyl Cover: | 3” to 2” tapered, 1 lb. density foam core Ash, Caramel or Teak |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® |
| Steps (Optional): | Everwood® or Polymer Coastal Gray, Espresso or Teak |
| Entertainment System (Optional): | Wireless Sound System |
* Includes water and 3 adults weighing 175 lbs.each
** Requires a dedicated circuit supplied to the unit at all times. Electrical requirements will vary outside the U.S.
*** G.F.C.I. protected sub-panel required in 30amp conversion or 220v mode Export models available in 230v, 50Hz, 1000w Heater
There’s room for everyone in the Rhythm, with seating for 7 and 35 powerful jets located in targeted groups in various seats. Fully insulated with FiberCor®, this spa is energy-efficient and always ready for you and your loved ones to enjoy.
| Seating Capacity:6 | 7 adults |
| Dimensions: | 7’ x 7’ x 36.75” /2.13m x 2.13m x .93m |
| Water Capacity: | 345 gallons/1,300 liters |
| Dry / Filled Weight: | 835 lbs./380 kg dry; 4,765 lbs. 2,160 kg filled* |
| Spa Shell Options: | Pearl, Sterling Marble, Tuscan Sun or Desert |
| Cabinet Options: | Coastal Gray, Espresso, Teak |
| Jets – 35 (w/ Stainless Steel Trim): | 5 Directional Hydromassage jets 3 Rotary Hydromassage jets 27 Directional Precision® jets |
| Water Feature: | Waterfall |
| Jet Pump 1: | Wavemaster® 6200; Two-speed, 1.5 HP Continuous Duty, 3.2 HP Breakdown Torque |
| Jet Pump 2: | Wavemaster® 6000; One-speed, 1.5 HP Continuous Duty, 3.2 HP Breakdown Torque |
| Ozone System (optional): | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® 230v/50 amp, 60 Hz Includes G.F.C.I. protected sub-panel |
| Lighting: | 10 multi-color LED points of light, dimmable |
| Heater: | No-Fault® 4000w/230v |
| Energy Efficiency: | FiberCor® insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Effective Filtration Area: | 65 sq. ft., top loading |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core Ash, Caramel or Espresso |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® or Polymer Coastal Gray, Espresso or Teak |
| Entertainment System (Optional): | Wireless Entertainment |
* Includes water and 6 adults weighing 175 lbs. each
Export models available in 240v, 50Hz, 1500w heater

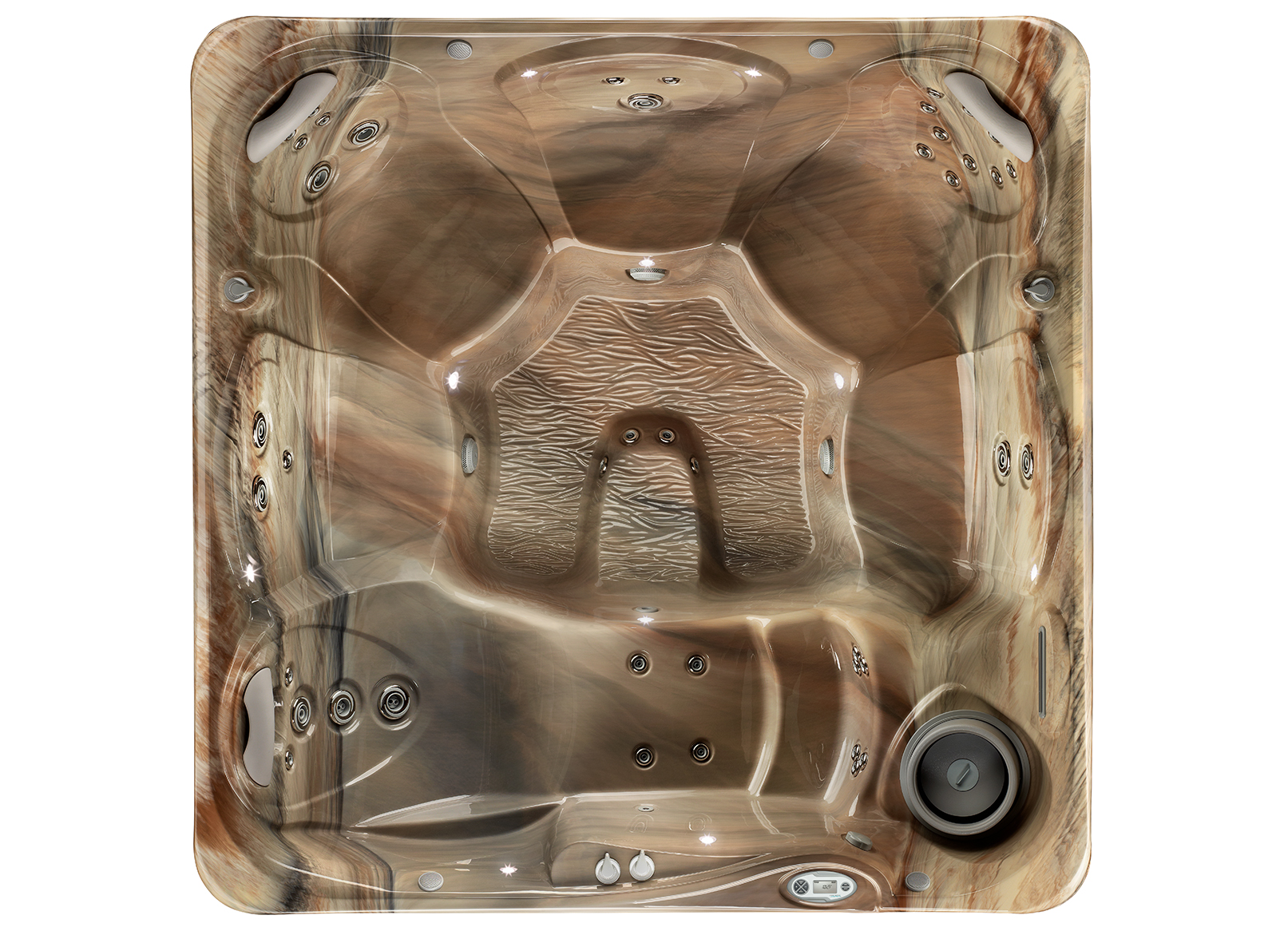

With seating for up to six people, the Tempo relieves tension with targeted jets, including Directional Hydromassage jets. Finished with impressive styling, LED lighting and total FiberCor® insulation to conserve energy, this reliable hot tub will provide comfort for many years to come.
| Seating Capacity:6 | 4adults |
| Dimensions: | 7’5” x 7’5” x 39”/2.26m x 2.26m x .99m |
| Water Capacity: | 415 gallons/1,575 liters |
| Dry / Filled Weight: | 910 lbs./415 kg dry; 5,420 lbs./2,470 kg filled* |
| Spa Shell Options: | Pearl, Sterling Marble, Tuscan Sun or Desert |
| Cabinet Options: | Coastal Gray, Espresso, Teak |
| Jets – 45 (w/ Stainless Steel Trim): | 6 Directional Hydromassage jets 4 Rotary Hydromassage jets 35 Directional Precision® jets |
| Water Feature: | Waterfall |
| Water Care System (Optional): | FreshWater™ Salt System |
| Jet Pump 1: | Wavemaster® 9200; Two-speed, 2.5 HP Continuous Duty, 5.2 HP Breakdown Torque |
| Jet Pump 2: | Wavemaster® 9000; One-speed, 2.5 HP Continuous Duty, 5.2 HP Breakdown Torque |
| Ozone System (optional): | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® 230v/50 amp, 60 Hz Includes G.F.C.I. protected sub-panel |
| Lighting: | 10 multi-color LED points of light, dimmable |
| Heater: | No-Fault® 4000w/230v |
| Energy Efficiency: | FiberCor® insulation; Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core Ash, Caramel or Espresso |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® or Polymer Coastal Gray, Espresso or Teak |
| Entertainment System (Optional): | Wireless Entertainment |
* Includes water and 6 adults weighing 175 lbs. each
Export models available in 240v, 50Hz, 1500w heater
Offering advanced hydromassage with the patented Moto-Massage DX® and a JetStream®, the Jetsetter comfortably seats up to 3 people and includes Luminescence® multi-color LED lighting and the BellaFontana® three-arc illuminated waterfall. This smaller model still features an insulating hinge seal and the Highlife Collection’s distinct style and simple water care options, a model that is perfect for your space and lifestyle. Ask about our ACE Salt Water option.
| Seating Capacity: | 3 adults |
| Dimensions: | 7’ x 5’5” x 29”/2.13m x 1.65m x .74m |
| Water Capacity: | 200 gallons/750 liters |
| Dry / Filled Weight: | 475 lbs./215 kg dry; 2,670 lbs./1,205 kg filled* |
| Spa Shell Options: | Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert** |
| Cabinet Options: | Everwood® HD: Mocha, Monterey Gray or Teak** |
| Jets – 14(w/ Stainless Steel Trim): | 1 Moto-Massage® DX jet (2) 1 JetStream® jet 2 Rotary Hydromassage jets 1 Directional Hydromassage jet 4 HydroStream® jets 4 Directional Precision® jets |
| Water Care System (Optional): | ACE® Salt Water Sanitizing System or EverFresh® System |
| Jet Pump: | Wavemaster® 7000; One-speed, 1.65 HP Continuous Duty, 3.5 HP Breakdown Torque |
| Circulation Pump: | SilentFlo 5000® for quiet, continuous filtration |
| Effective Filtration Area: | 190 sq. ft., top loading 100% no-bypass filtration |
| Ozone System: | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® with touchscreen control panel 115v/20 amp (includes G.F.C.I. protected power cord) or 230v/50amp, 60 Hz*** |
| Lighting System: | Luminescence® multi-color four-zone |
| Heater: | No-Fault®, 1500w/115v or 6000w/230v |
| Energy Efficiency: | Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate, Slate, or Evergreen |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® HD, NXT 0r Polymer |
| Entertainment System (Optional): | Wireless Sound System |
* Includes water and 3 adults weighing 175 lbs. each
**Some color combinations are considered special orders.
Ice Gray/Teak, Crème/Monterey Gray, Desert/Monterey Gray, and Platinum/Teak have special order pricing.
***G.F.C.I. Protected sub-panel required in 230v mode Export models available in 230v, 50Hz, 1500w Heater, 2.5 HP (Wavemaster® 9000; One-speed, 2.5 HP Continuous Duty, 5.2 HP Breakdown Torque), & Tri-X filters
With contemporary styling, Luminescence® multi-color LED lighting and the BellaFontana® three-arc illuminated waterfall, you can bask in the ambiance of the Sovereign spa while enjoying a soothing massage. With expansive Barrier-Free seating for up to 6 people and a variety of 28 jets, there’s room for everyone to totally relax. Ask about our ACE Salt Water option.
| Seating Capacity: | 6 adults |
| Dimensions: | 6’8” x 7’9” x 33”/2.03m x 2.36m x .84m |
| Water Capacity: | 315 gallons/1,200 liters |
| Dry / Filled Weight: | 745 lbs./340 kg dry; 4,425 lbs./2,020 kg filled* |
| Spa Shell Options: | Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert** |
| Cabinet Options: | Everwood® HD: Mocha, Monterey Gray or Teak** |
| Jets – 22(w/ Stainless Steel Trim): | 1 Moto-Massage® DX jet (2) 2 SoothingStream® jets 1 JetStream® jet 2 Rotary Hydromassage jets 3 Directional Hydromassage jets 18 Directional Precision® jets |
| Water Feature: | BellaFontana® with 3 illuminated arcs of water |
| Water Care System (Optional): | ACE® Salt Water Sanitizing System or EverFresh® System |
| Jet Pump: | Wavemaster® 9200; Two-speed, 2.5 HP Continuous Duty, 5.2 HP Breakdown Torque |
| Circulation Pump: | SilentFlo 5000® for quiet, continuous filtration |
| Effective Filtration Area: | 195 sq. ft., top loading Tri-X® filters 100% no-bypass filtration |
| Ozone System: | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® with touchscreen control panel 230v/50amp, 60Hz, Includes G.F.C.I. protected sub-panel |
| Lighting System: | Luminescence® multi-color four-zone |
| Heater: | No-Fault®, 6000w/230v |
| Energy Efficiency: | Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate, Slate, or Evergreen |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® HD, NXT 0r Polymer |
| Entertainment System (Optional): | Wireless Sound System |
* Includes water and 6 adults weighing 175 lbs. each
**Some color combinations are considered special orders.
Ice Gray/Teak, Crème/Monterey Gray, Desert/Monterey Gray, and Platinum/Teak have special order pricing.
Export models available in 230v, 50Hz, 1500w Heater

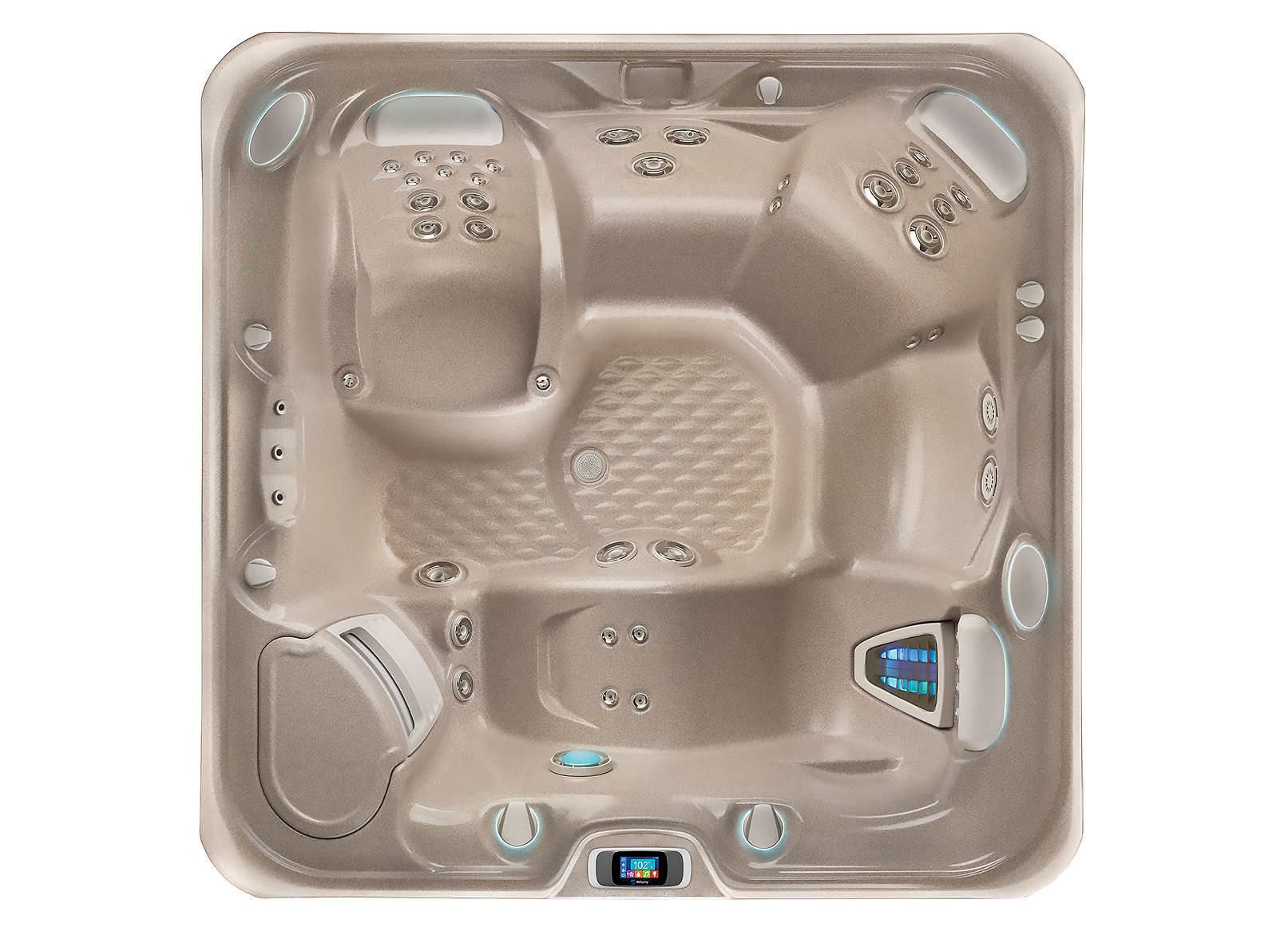

Featuring 43 powerful jets at its heart, the Hot Spring Envoy provides powerful performance that leads to soothing, blissful relaxation. With seating for 5, advanced Tri-X® filtration for cleaner water and Wavemaster® continuous duty jet pumps, spending time in your Envoy will help you feel your best.
| Seating Capacity: | 5 adults |
| Dimensions: | 7’9” x 7’7” x 38”/2.36m x 2.31m x .97m |
| Water Capacity: | 390 gallons/1,475 liters |
| Weight: | 950 lbs./430 kg dry; 5,080 lbs./2,305 kg filled* |
| Spa Shell Options: | Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert** |
| Cabinet Options: | Everwood®HD: Mocha, Monterey Gray or Teak** SpaStone®: Earth or Gray |
| Jets – 43(w/ Stainless Steel Trim): | 1 Moto-Massage® DX jet (2) 2 SoothingStream® jets 3 JetStream® jets 2 Rotary Hydromassage jets 3 Directional Hydromassage jets 10 HydroStream® jets 2 Rotary Precision® jets 19 Directional Precision® jets |
| Water Feature: | BellaFontana® with 3 illuminated arcs of water |
| Water Care System (Optional): | ACE® Salt Water Sanitizing System or EverFresh® System |
| Jet Pump 1: | Wavemaster® 9000; One-speed, 2.5 HP Continuous Duty, 5.2 HP Breakdown Torque |
| Jet Pump 2: | Wavemaster® 8200; Two-speed, 2.0 HP Continuous Duty, 4.0 HP Breakdown Torque |
| Circulation Pump: | SilentFlo 5000® for quiet, continuous filtration |
| Effective Filtration Area: | 325 sq. ft., top loading Tri-X® filters 100% no-bypass filtration |
| Ozone System: | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® with touchscreen control panel 230v/50amp, 60Hz, Includes G.F.C.I. protected sub-panel |
| Lighting System: | Luminescence® multi-color four-zone |
| Heater: | No-Fault®, 4000w/230v |
| Energy Efficiency: | Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate, Slate, or Evergreen |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® HD, NXT, Polymer, SpaStone |
| Entertainment System (Optional): | Wireless Sound System |
* Includes water and 7 adults weighing 175 lbs. each
**Some color combinations are considered special orders. Ice Gray/Teak, Crème/Monterey Gray,
Desert/Monterey Gray, and Platinum/Teak have special order pricing.
Export models available in 230v, 50Hz, 1500w Heater
The innovative Prodigy comfortably seats five people, with a variety of innovative jet configurations in each seating location. In addition to soothing massage, this luxurious spa’s sensible style and design help it fit perfectly in any yard space, with Luminescence® multi-color LED lighting and the BellaFontana® three-arc illuminated waterfall feature you’ll feel right at home. Ask about our ACE Salt Water option.
| Seating Capacity: | 5 adults |
| Dimensions: | 6’6” x 7’ x 33”/1.98m x 2.13m x .84m |
| Water Capacity: | 290 gallons/1,100 liters |
| Dry / Filled Weight: | 645 lbs./295 kg dry; 3,940 lbs./1,795 kg filled* |
| Spa Shell Options: | Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert** |
| Cabinet Options: | Everwood® HD: Mocha, Monterey Gray or Teak** |
| Jets – 22(w/ Stainless Steel Trim): | 1 Moto-Massage® DX jet (2) 2 SoothingStream® jets 1 JetStream® jets 2 Rotary Hydromassage jets 1 Directional Hydromassage jets 14 Directional Precision® jets |
| Water Feature: | BellaFontana® with 3 illuminated arcs of water |
| Water Care System (Optional): | ACE® Salt Water Sanitizing System or EverFresh® System |
| Jet Pump 1: | Wavemaster® 7000; One-speed, 1.65 HP Continuous Duty, 3.5 HP Breakdown Torque |
| Jet Pump 2: | Wavemaster® 9200; Two-speed, 2.5 HP Continuous Duty, 5.2 HP Breakdown Torque |
| Circulation Pump: | SilentFlo 5000® for quiet, continuous filtration |
| Effective Filtration Area: | 90 sq. ft., top loading 100% no-bypass filtration |
| Ozone System: | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® with touchscreen control panel 115v/20amp, (includes G.F.C.I. protected power cord) or 230v/50amp, 60Hz*** |
| Lighting System: | Luminescence® multi-color four-zone |
| Heater: | No-Fault®, 1500w/115v or 6000w/230v |
| Energy Efficiency: | Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate, Slate, or Evergreen |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® HD, NXT 0r Polymer |
| Entertainment System (Optional): | Wireless Sound System |
* Includes water and 5 adults weighing 175 lbs. each
**Some color combinations are considered special orders. Ice Gray/Teak, Crème/Monterey Gray,
Desert/Monterey Gray, and Platinum/Teak have special order pricing.
***G.F.C.I. protected sub-panel required in 230v mode
Export models available in 230v, 50Hz, 1500w Heater, Tri-X® filters

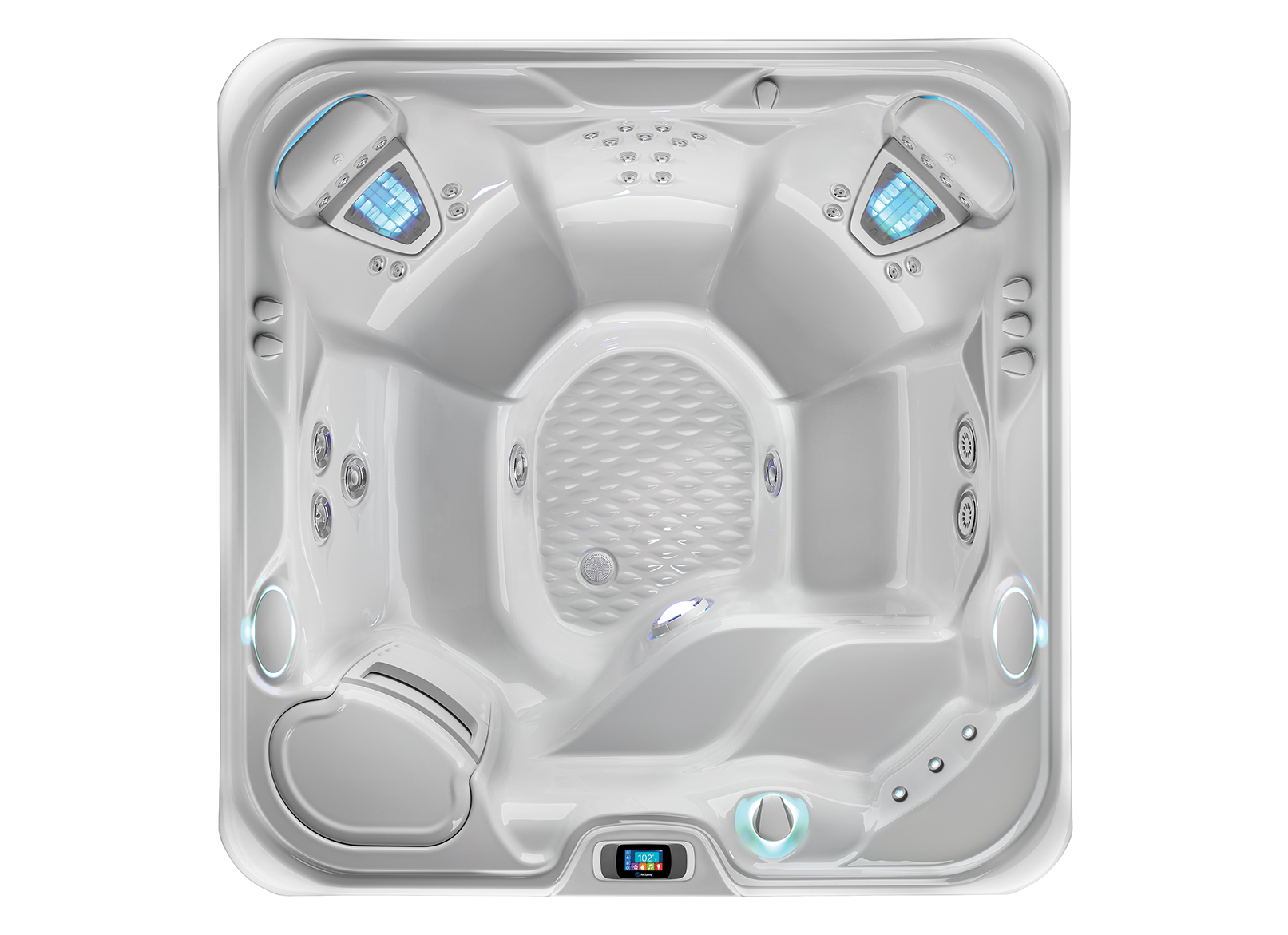

The energy-efficient Vanguard comfortably seats 6 people and features targeted jet groups that soothe your neck, shoulders, back and feet. Bask in the soothing ambience in comfortable stylish seating, with Luminescence® multi-color LED lighting and the BellaFontana® three-arc illuminated waterfall feature. Ask about our ACE Salt Water option.
| Seating Capacity: | 6 adults |
| Dimensions: | 7’3” x 7’3” x 36”/2.20m x 2.20m x .91m |
| Water Capacity: | 335 gallons/1,275 liters |
| Weight: | 820 lbs./370 kg dry; 4,665 lbs./2,125 kg filled* |
| Spa Shell Options: | Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert** |
| Cabinet Options: | Everwood®HD: Mocha, Monterey Gray or Teak** SpaStone®: Earth or Gray |
| Jets – 38 (w/ Stainless Steel Trim): | 2 Moto-Massage® DX jet (2) 2 SoothingStream® jets 2 JetStream® jets 2 Rotary Hydromessage jets 1 Directional Hydromassage jets 27 Directional Precision® jets |
| Water Feature: | BellaFontana® with 3 illuminated arcs of water |
| Water Care System (Optional): | ACE® Salt Water Sanitizing System or EverFresh® System |
| Jet Pump 1: | Wavemaster® 8000; One-speed, 2.0 HP Continuous Duty, 4.0 HP Breakdown Torque |
| Jet Pump 2: | Wavemaster® 9200; Two-speed, 2.5 HP Continuous Duty, 5.2 HP Breakdown Torque |
| Circulation Pump: | SilentFlo 5000® for quiet, continuous filtration |
| Effective Filtration Area: | 325 sq. ft., top loading Tri-X® filters 100% no-bypass filtration |
| Ozone System: | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® with touchscreen control panel 230v/50amp, 60Hz, Includes G.F.C.I. protected sub-panel |
| Lighting System: | Luminescence® multi-color four-zone |
| Heater: | No-Fault®, 4000w/230v |
| Energy Efficiency: | Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate, Slate, or Evergreen |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® HD, NXT, Polymer, SpaStone |
| Entertainment System (Optional): | Wireless Sound System |
* Includes water and 5 adults weighing 175 lbs. each
**Some color combinations are considered special orders. Ice Gray/Teak, Crème/Monterey Gray,
Desert/Monterey Gray, and Platinum/Teak have special order pricing.
Export models available in 230v, 50Hz, 1500w Heater

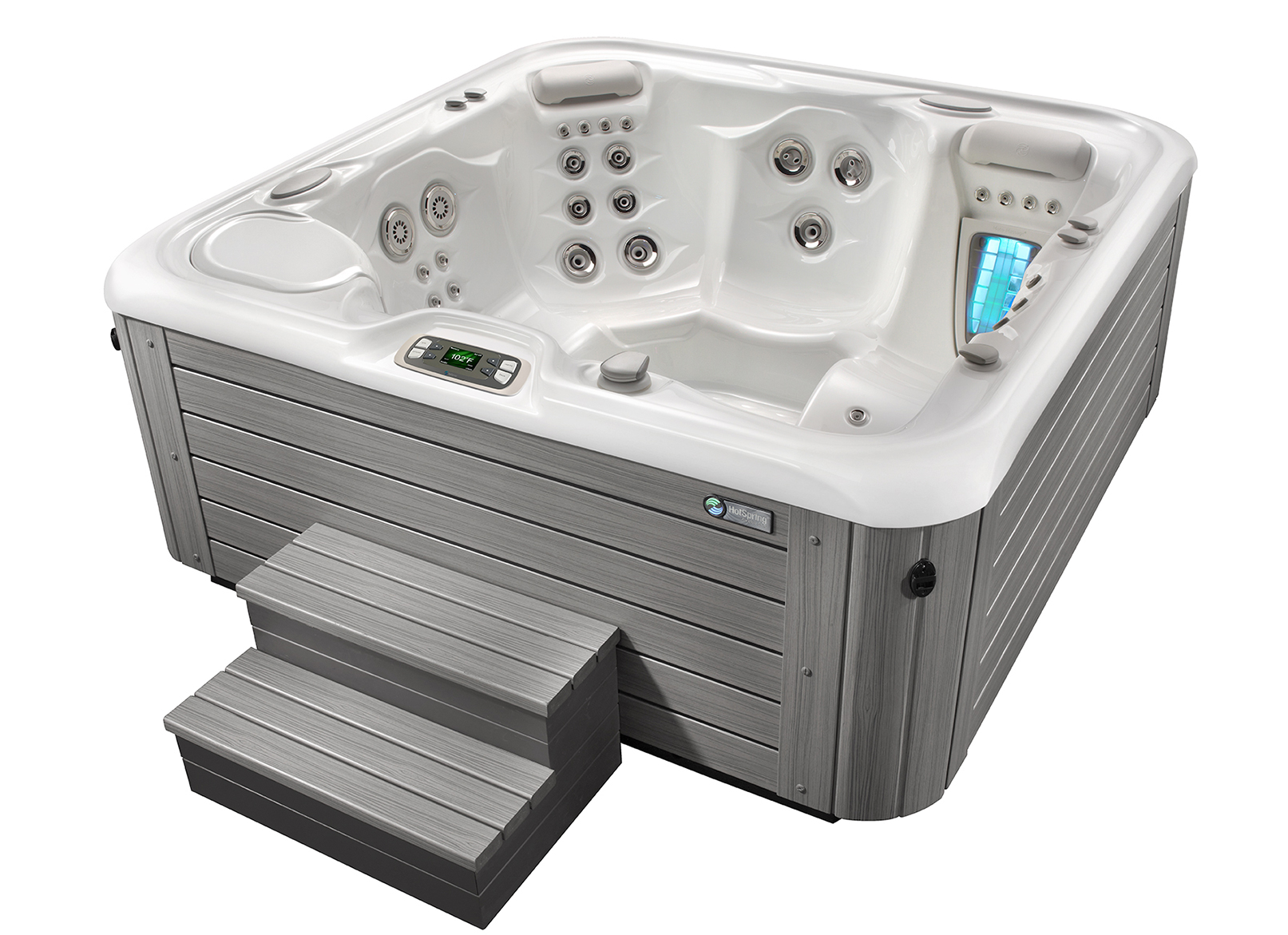

The powerful Aria features advanced technology like the Moto-Massage® DX jets, an insulating hinge seal and Tri-X® filters with a comfortable lounge seat for relaxing hydromassage. The contemporary cabinet profile and shell colors make it a gorgeous addition to any yard.
| Seating Capacity: | 5 adults |
| Dimensions: | 7’3” x 7’3” x 36”/2.20m x 2.20m x .91m |
| Water Capacity: | 325 gallons/1,225 liters |
| Weight: | 820 lbs./370 kg dry; 4,405 lbs./1995 kg filled* |
| Spa Shell Options: | Alpine White, Crème, Ice Gray, Platinum, Tuscan Sun, or Desert** |
| Cabinet Options: | Everwood®HD: Mocha, Monterey Gray or Teak** SpaStone®: Earth or Gray |
| Jets – 35 (w/ Stainless Steel Trim): | 1 Moto-Massage® DX jet (2) 2 SoothingStream® jets 2 JetStream® jets 2 Rotary Hydromassage jets 5 Directional Hydromassage jets 4 HydroStream® jets 18 Directional Precision® jets |
| Water Feature: | BellaFontana® with 3 illuminated arcs of water |
| Water Care System (Optional): | ACE® Salt Water Sanitizing System or EverFresh® System |
| Jet Pump 1: | Wavemaster® 9000; One-speed, 2.5 HP Continuous Duty, 5.2 HP Breakdown Torque |
| Jet Pump 2: | Wavemaster® 8200; Two-speed, 2.0 HP Continuous Duty, 4.0 HP Breakdown Torque |
| Circulation Pump: | SilentFlo 5000® for quiet, continuous filtration |
| Effective Filtration Area: | 325 sq. ft., top loading Tri-X® filters 100% no-bypass filtration |
| Ozone System: | FreshWater® III Corona Discharge |
| Control System: | IQ 2020® with touchscreen control panel 230v/50amp, 60Hz, Includes G.F.C.I. protected sub-panel |
| Lighting System: | Luminescence® multi-color four-zone |
| Heater: | No-Fault®, 4000w/230v |
| Energy Efficiency: | Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law |
| Vinyl Cover: | 3.5” to 2.5” tapered, 2 lb. density foam core, with hinge seal in Caramel, Chocolate, Slate, or Evergreen |
| Cover Lifter (Optional): | CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite® |
| Steps (Optional): | Everwood® HD, NXT, Polymer, SpaStone |
| Entertainment System (Optional): | Wireless Sound System |
* Includes water and 5 adults weighing 175 lbs. each
**Some color combinations are considered special orders. Ice Gray/Teak, Crème/Monterey Gray,
Desert/Monterey Gray, and Platinum/Teak have special order pricing.
Export models available in 230v, 50Hz, 1500w Heater
For those who like to entertain, this beautiful and highly efficient tub provides is the perfect destination. The 750 Hybrid4 is loaded with incredible hydro massage, incredible ergonomic design which provides luxury seating for up to 8, with 1 cooling seat, and up to 192 fully customizable Water Movement Jets. Just be careful, once people enter this vacation, they may never want to leave.
Available in LEEP Edition.
| FlexJet Configuration: | 45 Jet Ports Delivering 106 – 192 fully customizable FlexJets |
| Seating Capacity: | 8 people + 1 cooling seat. |
| Dimensions: | 89 x 89 x 38 inches |
| Dry / Filled Weight: | 800 lbs / 4446 lbs. |
| Water Capacity: | 437 US gallons |
| Jet Pump Configuration: | 2 x 4.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting & Crescent Moon LED Ambient Lighting System |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 4 Wall 100% Cavity Sealed Insulation System |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Hybrid 4™ Safe Axis Step |
| Electrical Requirements: | 50 AMP, 230v, Teck 6/3 |
This energy efficient oasis is the perfect way to disconnect from the digital world for some quality time re-connecting with your family or friends. The 730 Hybrid4 features a full-body massaging lounger, Reflex Foot Massage and seats up to 6 people with 1 cooling seat. With up to 161 fully customizable Water Movement Jets to help you disconnect from everyday stresses.
Available in LEEP Edition.
| FlexJet Configuration: | 36 Jet Ports Delivering 97 – 161 fully customizable FlexJets |
| Seating Capacity: | 6 people + 1 cooling seat, Luxury Lounger |
| Dimensions: | 80 x 88 x 38 inches |
| Dry / Filled Weight: | 675 lbs / 3470 lbs. |
| Water Capacity: | 335 US gallons. |
| Jet Pump Configuration: | 1 x 2.5HP / 1x 3.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting & Crescent Moon LED Ambient Lighting System |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 4 Wall 100% Cavity Sealed Insulation System |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Hybrid 4™ Safe Axis Step |
| Electrical Requirements: | 50 AMP, 230v, Teck 6/3 |
Whether it’s peace and tranquility you’re seeking or social time with friends and family, the 720 Hybrid4 lets you do it all. With Reflex Foot Massage, up to 147 fully customizable Water Movement Jets, seating for 7 and 1 cooling seat, you can feed your soul, calm your spirit and connect with loved ones while enjoying the perfect spa experience.
Available in LEEP Edition.
| FlexJet Configuration: | 32 Jet Ports Delivering 85 – 147 fully customizable FlexJets |
| Seating Capacity: | 7 people + 1 cooling seat, Versatile Seat |
| Dimensions: | 80 x 88 x 38 inches |
| Dry / Filled Weight: | 675 lbs / 3695 lbs. |
| Water Capacity: | 280 US gallons. |
| Jet Pump Configuration: | 1 x 2.5HP / 1x 3.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting & Crescent Moon LED Ambient Lighting System |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 4 Wall 100% Cavity Sealed Insulation System |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Hybrid 4™ Safe Axis Step |
| Electrical Requirements: | 50 AMP, 230v, Teck 6/3 |
From the moment you step into the 710 Hybrid4, enveloped in the soothing water, time stands still and the shift begins. Perfect to unwind after a long day as you enjoy the stress-reducing benefits of hydrotherapy with the signature series Ecsta-Seat massage. With up to 143 fully customizable Water Movement Jets. Seating for 4, including a luxurious ergonomically designed lounger, this relaxing experience is yours, whenever you need it.
Available in LEEP Edition.
| FlexJet Configuration: | 32 Jet Ports Delivering 91 – 143 fully customizable FlexJets. |
| Seating Capacity: | 4 people + 1 cooling seat, Luxury Lounger |
| Dimensions: | 70 x 86 x 38 inches |
| Dry / Filled Weight: | 700 lbs / 3037 lbs. |
| Water Capacity: | 280 US gallons. |
| Jet Pump Configuration: | 1 x 2.5HP / 1x 3.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting & Crescent Moon LED Ambient Lighting System |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 4 Wall 100% Cavity Sealed Insulation System |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Hybrid 4™ Safe Axis Step |
| Electrical Requirements: | 50 AMP, 230v, Teck 6/3 |
Let your mind drift away and your perspective change as you step into the most perfect part of your day. With a cooling seat and room for 7 people, it’s perfect for all the members of your family. The 578 Hybrid4 is value and luxury combined with up to112 fully customizable Water Movement Jets. It’s the perfect way to start or end your day.
Available in LEEP Edition.
| FlexJet Configuration: | 28 Jet Ports Delivering 54 – 112 fully customizable FlexJets. Inc. Reflex Foot Massage |
| Seating Capacity: | 7 people + 1 cooling seat, Dedicated High Seat |
| Dimensions: | 80 x 88 x 38 inches |
| Dry / Filled Weight: | 650 lbs / 3670 lbs. |
| Water Capacity: | 362 US gallons. |
| Jet Pump Configuration: | 1 x 4.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting, Eclipse LED Ambient Mood Lighting System. |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 4 Wall 100% Cavity Sealed Insulation System |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Hybrid 4™ Safe Axis Step |
| Electrical Requirements: | 40 AMP, 230v, Teck 8/3 |
The 550 Hybrid4 6-person tub has up to 106 customizable Water Movement Jets and one cooling seat, that suits the tastes of everyone. Whether you like to stretch out and float or relax in the luxurious deep seat with neck massage, the 550 Hybrid4 allows for seamless shifting between the two. With a generous amount of space, it’s just what the doctor ordered in helping you unwind and recharge.
Available in LEEP Edition.
| FlexJet Configuration: | 27 Jet Ports Delivering 58 – 106 fully customizable FlexJets. Inc. Reflex Foot Massage |
| Seating Capacity: | 6 people + 1 cooling seat. |
| Dimensions: | 80 x 88 x 38 inches |
| Dry / Filled Weight: | 650 lbs / 3820 lbs. |
| Water Capacity: | 379 US gallons. |
| Jet Pump Configuration: | 1 x 4.5HP |
| Circulation Pump: | Beachcomber Hush Pump (Optional Extra) |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 4 Wall 100% Cavity Sealed Insulation System |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Hybrid 4™ Safe Axis Step |
| Electrical Requirements: | 40 AMP, 230v, Teck 8/3 |
Romance and relaxation are always on the menu with the 520 model. With room for 2 to comfortably lounge and up to 60 fully customizable Water Movement Jets ready to target pressure points throughout your body, the 520 lets you disconnect from your busy lives to bring the romance back into your love life and savour the bliss.
| FlexJet Configuration: | 19 Jet Ports Delivering 41 – 60 fully customizable FlexJets. |
| Seating Capacity: | 2 people |
| Dimensions: | 57 x 75 x 38 inches |
| Dry / Filled Weight: | 425 lbs / 1885 lbs. |
| Water Capacity: | 175 US gallons |
| Jet Pump Configuration: | 1 x 2.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump (Optional Extra) |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 4 Wall 100% Cavity Sealed Insulation System |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Polymer Step (Optional Extra) |
| Electrical Requirements: | 40 AMP, 230v, Teck 8/3 |
Take advantage of the ultimate in relaxation every time you step out into the backyard. The 380 Hybrid4 gives you contoured ergonomic seating for up to 7 people, one cooling seat and the option to have up to 102 Water Movement Jets fully customized the way you want. Savour the moments that matter.
Also available in LEEP Edition.
| FlexJet Configuration: | 23 Jet Ports Delivering 40 – 102 fully customizable FlexJets |
| Seating Capacity: | 7 people + 1 cooling seat |
| Dimensions: | 89 x 89 x 38 inches |
| Dry / Filled Weight: | 725 lbs / 4212 lbs. |
| Water Capacity: | 418 US gallons. |
| Jet Pump Configuration: | 1 x 3.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump (Optional Extra) |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 4 Wall 100% Cavity Sealed Insulation System |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Hybrid 4™ Safe Axis Step |
| Electrical Requirements: | 40 AMP, 230v, Teck 8/3 |
Ideal for re-connecting with close friends and loved ones outside of the chaos of everyday life. The 360 Hybrid4 gives you body contoured seating for 7, one cooling seat and the ability to have up to 100 Water Movement Jets fully customized to fit your needs.
Spacious and comfortable, the 360 Hybrid4 is also available in LEEP option.
| FlexJet Configuration: | 28 Jet Ports Delivering 39 – 100 fully customizable FlexJets |
| Seating Capacity: | 6 people + 1 cooling seat |
| Dimensions: | 80 x 88 x 38 inches |
| Dry / Filled Weight: | 650 lbs / 3528 lbs. |
| Water Capacity: | 345 US gallons |
| Jet Pump Configuration: | 1 x 3.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting, Eclipse LED Ambient Mood Lighting System. |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency:4 | 4 Wall 100% Cavity Sealed Insulation System. |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Hybrid 4™ Safe Axis Step |
| Electrical Requirements: | 40 AMP, 230v, Teck 8/3 |
Another family favourite, the 350 gives you comfortable ergonomic seating for 6 people, one cooling seat and the ability to have up to 104 Water Movement Jets customized to give you the perfect massage. With energy efficiency in mind, the 350 Hybrid4 is extremely cost effective to run, to cure the stress of daily life.
Also available in LEEP Edition.
| FlexJet Configuration: | 23 Jet Ports Delivering 39 – 104 fully customizable FlexJets |
| Seating Capacity: | 6 people + 1 cooling seat |
| Dimensions: | 80 x 88 x 38 inches |
| Dry / Filled Weight: | 650 lbs / 3528 lbs. |
| Water Capacity: | 375 US gallons |
| Jet Pump Configuration: | 1 x 3.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting, Eclipse LED Ambient Mood Lighting System. |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency:4 | Wall 100% Cavity Sealed Insulation System. |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Hybrid 4™ Safe Axis Step |
| Electrical Requirements: | 40 AMP, 230v, Teck 8/3 |
The next level of affordable luxury moves you into the popular rectangle shaped tub. Perfect for families, this 340 LEEP model has contoured seating for 5, 2 cooling seats and the option to have up to 81 fully customizable Water Movement Jets. With a little more space and water than the 320, it’s ideal for 5 of your closest friends and family to lounge and enjoy a new kind of happy hour.
| FlexJet Configuration: | 25 Jet Ports Delivering 54 – 102 fully customizable FlexJets. Inc. Reflex Foot Massage |
| Seating Capacity: | 5 people + 2 cooling seats |
| Dimensions: | 70 x 86 x 34 inches |
| Dry / Filled Weight: | 540 lbs / 3143 lbs. |
| Water Capacity: | 300 US gallons. |
| Jet Pump Configuration: | 1 x 3.5HP Message Master XLT |
| Circulation Pump: | Beachcomber Hush Pump |
| Filtration: | 25 SQ. FT Hydro-cyclonic Filtration |
| Lighting System: | Everlite 6 Moodlighting |
| Heater: | 5.5KW Full Immersion Heating System |
| Energy Efficiency: | 3 Wall 100% Cavity Sealed Insulation System. |
| Vinyl Cover: | Genuine Beachcomber 4” to 3” tapered Cover. R-Factor 14.4 per inch. Heat Bumper Seal. Vacuum Fit Radius Corners. |
| Steps: | Polymer Step (Optional Extra) |
| Electrical Requirements: | 40 AMP, 230v, Teck 8/3 |
